Sony STARVIS 2 Image Sensor
Experience unmatched clarity with the U3000, equipped with upgraded 4K recording, powered by Sony’s advanced STARVIS 2 sensor and a high-performance Ambarella CPU. This enhanced technology ensures exceptional video quality, while the adjustable bitrate feature allows you to capture footage with greater precision and detail.
Wide Dynamic Range
Enhances image clarity by adjusting color balance in bright or shadowed environments.
Smart Auto-Exposure
Automatically adjusts exposure for clear footage in bright sunlight or headlight glare.
Dewarping Technology
Minimizes image distortion typically caused by a wide angle lens, and delivers a close-to-real image of the world.

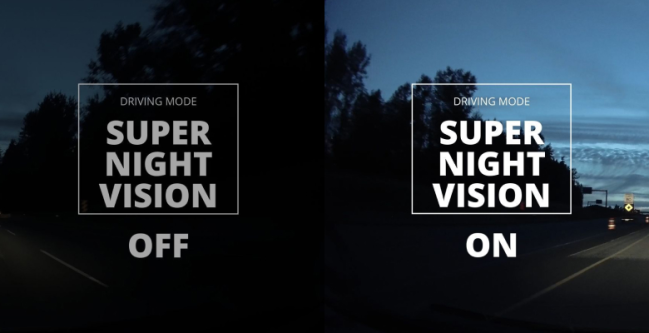

Super Night Vision 4.0
Super Night Vision 4.0 takes advantage of Sony STARVIS 2’s advances in high sensitivity and low noise technology to help the U3000 capture clearer footage in low-light conditions.
Radar Parking Mode
with Built-in Radar
Radar Parking Mode uses low-power front and rear radars to monitor motion, ensuring extended parking surveillance with minimal power consumption. When the radar detects movement in the selected range, the dash cam “wakes up” from a low-power state and records a 20-second video clip.
*Requires hardwiring or the OBD-II cable
Parking Surveillance
Automatically activates when you turn off the ignition, capturing footage to provide video evidence of any incidents, such as hit-and-runs, while your vehicle is parked.
Smart Parking Mode
Time Lapse
Energy Saving
Motion & Impact Detection

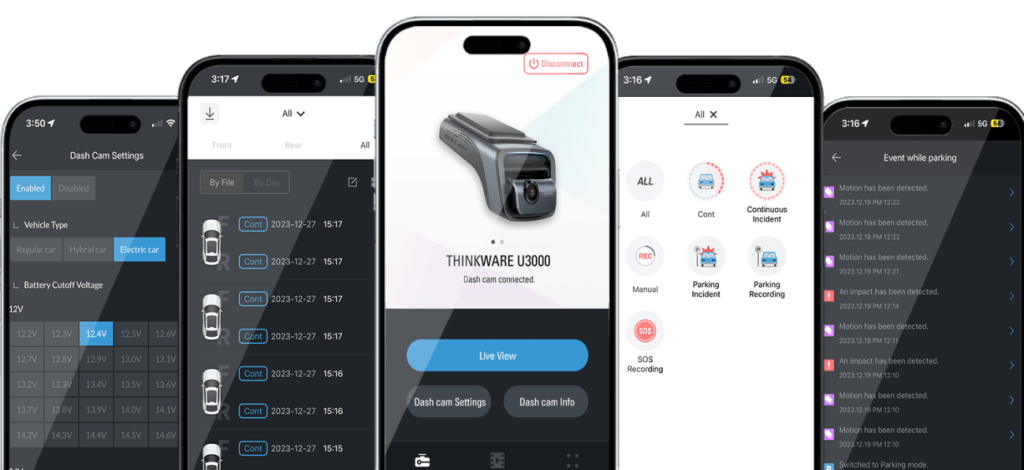

Easy Wi-Fi
Device Pairing
Effortlessly pair your dash cam with any compatible Android or iOS device using the THINKWARE DASH CAM LINK app. Once connected, you can easily adjust settings, replay footage, and download your latest driving videos on the go.
Dual-band Wi-Fi
Enjoy the best connectivity in any environment with the U3000’s dual-band Wi-Fi. Your iOS or Android smartphone can be connected to either the 2.4 GHz or 5 GHz bandwidth for faster file transfers.
THINKWARE CONNECTED

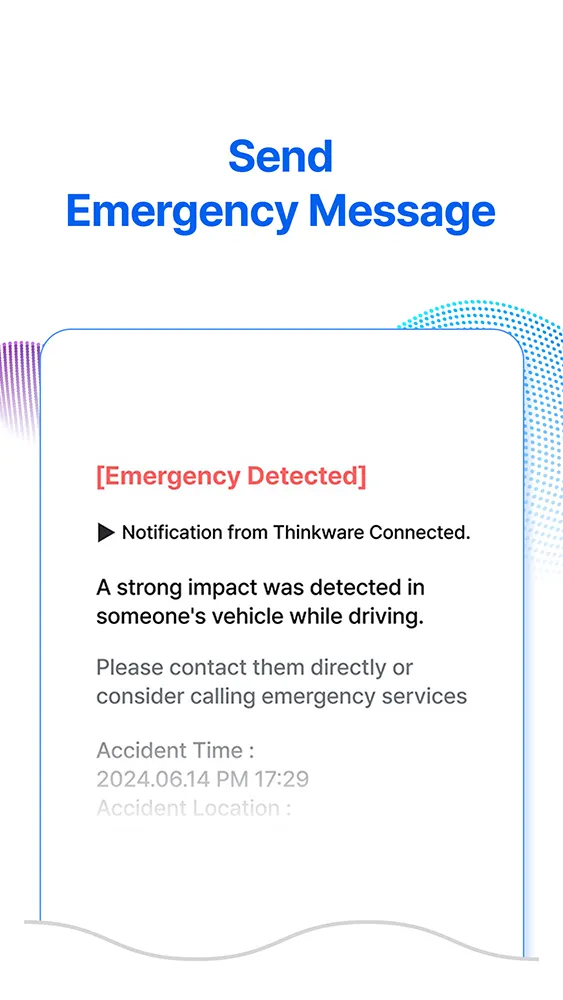

Receive impact notifications or monitor remotely what’s happening around your vehicle via your smartphone with the THINKWARE CONNECTED app.
1. Connecting the dash cam to a mobile hotspot device or a Wi-Fi network with Internet access will consume data. Carrier/Service Provider charges may apply.
2. The smartphone used to set up the Internet connection on the dash cam cannot also be used as a mobile hotspot for the dash cam. A different hotspot device/smartphone is required.
3. To connect the dash cam to the internet, use the Thinkware Dash Cam Link App. Once the dash cam is connected to the internet, you can go to the Thinkware CONNECTED app to get access to CONNECTED features.
Advanced Driver Assistance Systems (ADAS)
A suite of features designed to enhance driving safety by reducing the risk of collisions and mitigating injury severity. These systems provide real-time audio alerts to help keep you aware of potential hazards on the road.
Front Vehicle Departure Warning (FVDW)
Alerts the driver when the vehicle in front has started to move when the driver is at a full stop.
Forward Collision Warning System (FCWS)
Calculates the speed and distance of the vehicle ahead, alerting the driver when the following distance becomes too close while travelling at speeds exceeding 25 mph.
Lane Departure Warning System (LDWS)
Notifies the driver when the vehicle unintentionally drifts out of its lane at speeds over 50 km/h.
Safety Camera Alerts
Using its built-in GPS, the dash cam tracks your vehicle’s speed and time data, providing alerts for upcoming red light and speed cameras.
Features
- Front – 4K UHD (3840 x 2160) @30 fps or 2K QHD (2560 x 1440) @60 fps
Rear – 2K QHD (2560 x 1440) @30 fps
8.4 MP Sony STARVIS 2 sensor
152° Wide Viewing Angle
Super Night Vision 4.0
Dewarping Technology
Advanced Video Clear Technology
HEVC format H.265
Built-in Radar
Built-in Bluetooth & Wi-Fi
Built-in GPS
ADAS (LDWS/FCWS/uFCWS/FVDW/RCWS)
Safety Camera Alert (Speed & Red Light Camera)
Parking Surveillance Mode (Radar, Smart, Motion & Impact Detection, Time Lapse and Energy Saving Mode)*
Easy Device Pairing

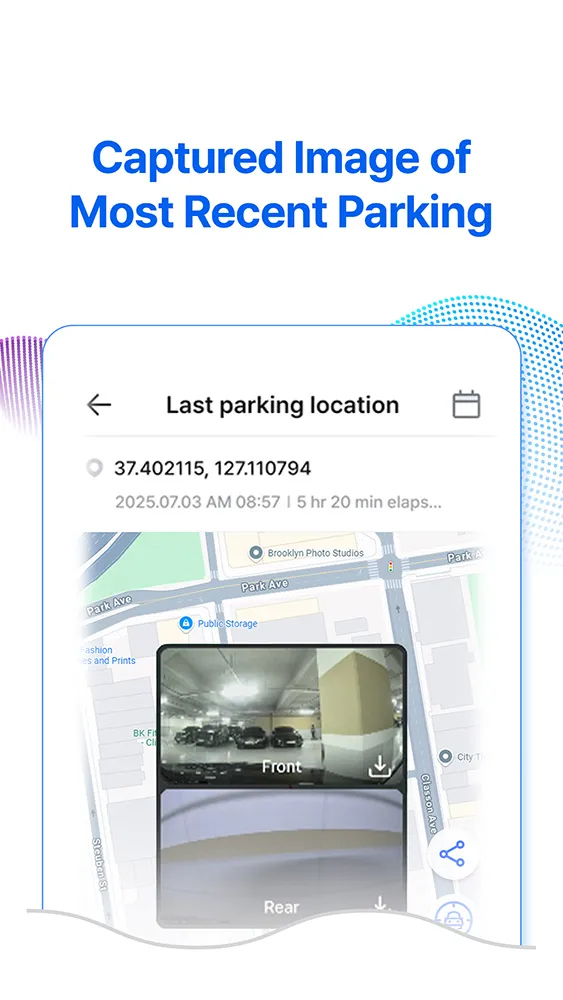

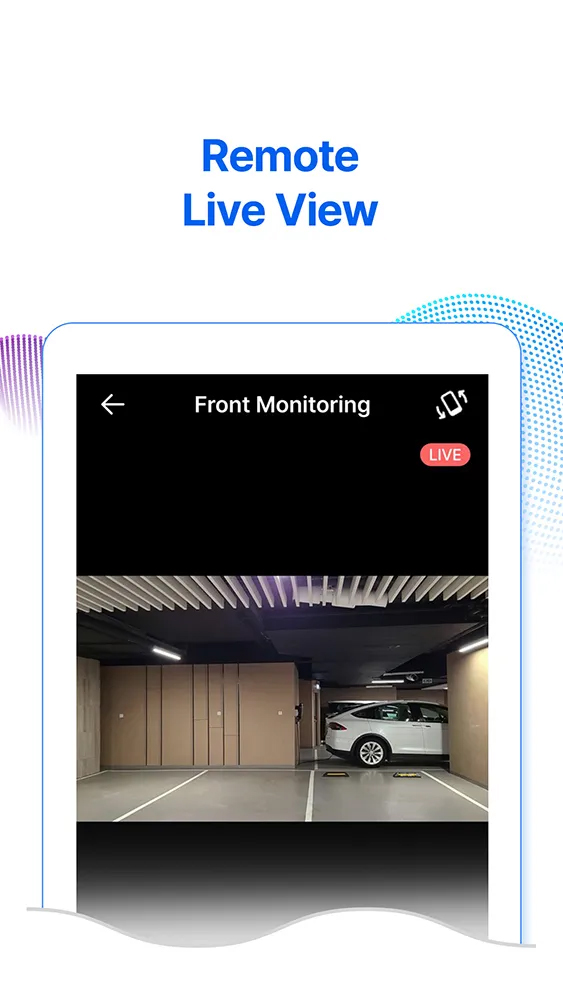

THINKWARE CONNECTED (Locate Vehicle, Impact Notification, Captured Image of Most Recent Parking and Remote Live View)**
THINKWARE Dash Cam Link app
Supports MicroSD Cards up to 512 GB
Supercapacitor
Integrated Thermal Protection
Anti-File Corruption
*Requires Hardwiring Cable or OBD II Power Cable and installation for Parking Surveillance mode (professional installation recommended)
**THINKWARE CONNECTED uses your smartphone’s or mobile hotspot device’s internet connection to send and receive notifications. Carrier charges may apply.
Specifications
- Resolution:
Front – 4K UHD (3840 x 2160) @30 fps or 2K QHD (2560 x 1440) @60 fps
Rear – 2K QHD (2560 x 1440) @30 fps
Camera:
Front – 8.4 MP Sony STARVIS 2 IMX678
Rear – 5.14 MP Sony STARVIS IMX335
Frame Rate:
Front – 30, 60 fps
Rear – 30 fps
Viewing Angle:
Front – 152° (Diagonal)
Rear – 128° (Diagonal)
Dimensions(WxDxH): 69.8 x 98.1 x 55.5 mm (2.75 x 3.86 x 2.19 in)
Weight: 133 g (0.293 lb)
Storage Temperature: -20°~ 70° C (-4°~ 158° F)
Operating Temperature: -10°~ 60° C (14°~ 140° F)
Capacity: MicroSD card 64/128/256/512 GB (UHS-I)
Interface: DC-IN / V-IN / EXT. / BAT. / MicroSD Card Slot
Input Power: DC 12/24V
GPS: Built-in GPS
Radar: Built-in Radar (Front, rear)
Languages: English (US, UK), Chinese (Simplified), French (Canada, France), German, Italian, Portuguese, Russian, Spanish
TW-U3000D64CO
